GANTRY MILLS
Introducing Mactech’s Gantry Mill. Save costly shop repairs with accurate, on-site milling, drilling and machining with no sag, and extended Y-axis reach. The modular frame and rail assemblies mean you can have a custom mill, quickly delivered right to your job site. The innovative design allows you to tell us your machining area, and we will assemble a Gantry Mill to meet your on-site milling needs. A powerful hydraulic drive motor makes smooth, clean and efficient cuts. The lightweight design gives you trouble-free lifting and positioning. Adjustable support plates make setup and leveling quick and easy.

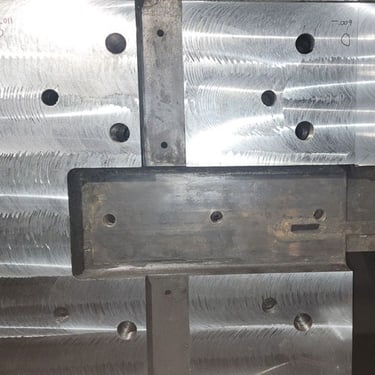

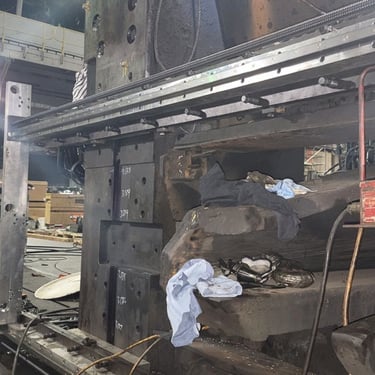

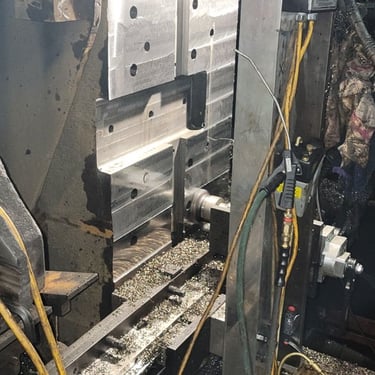

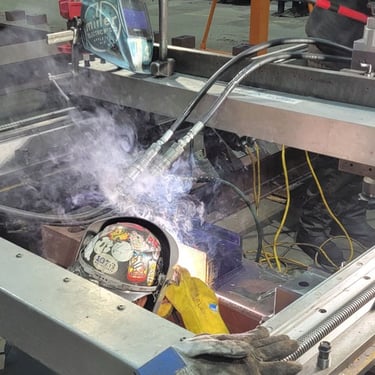

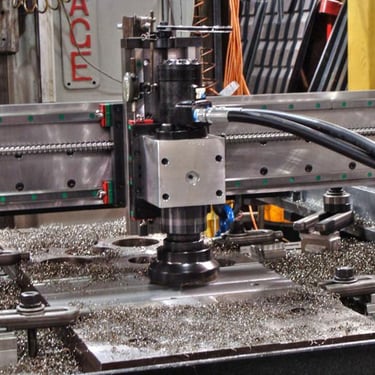

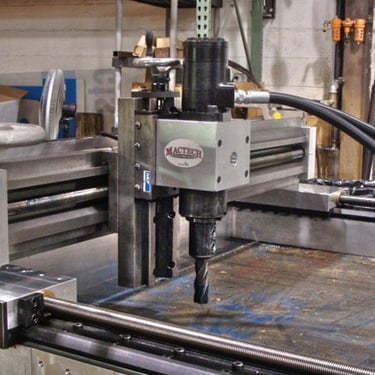

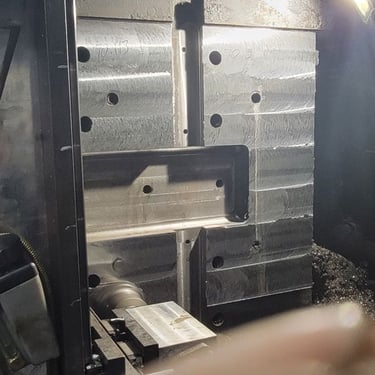

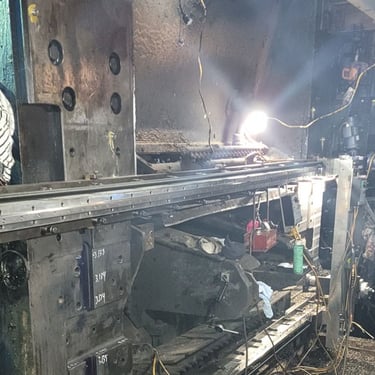

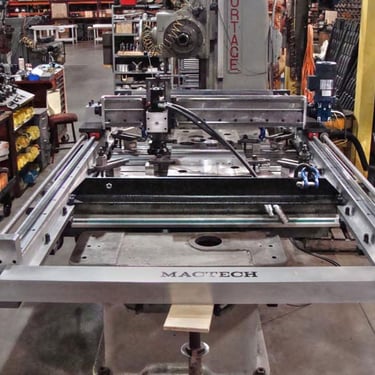

GANTRY MILLS GALLERY
MACTECH GANTRY MILL MODEL(S) AVAILABLE
• 40" x 48" Cutting area
• 40" x 72" Cutting area
• 40" x 180" Cutting area
Each of our custom Gantry mills can be set up for side Milling as well,
moving the y-axis arm to the outside of the mill.
INCLUDED ACCESSORIES:
• Electric and Manual drive
• All required hand tools

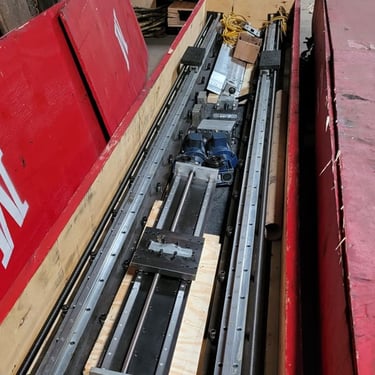

• Box for machine storage
• Operating manual with parts list
SPECIFICATIONS
• Electric Drive Motor: 180 VDC, 1/2 HP, 2500 rpm
• Motor Control: 115/230 input voltage
• Gear Reduction: 40:1
• Feed Rate: 0 to 30.0 inches/minute
X-axis:
Y-axis:
• Electric Drive Motor: 180 VDC, 1/2 HP, 2500 rpm
• Motor Control: 115/230 input voltage
• Gear Reduction: 40:1
• Feed Rate: 0 to 24.0 inches/minute
Z-axis:
• MT6 Slide
• Manual feed
• NMTB Shank
• R40 taper bearing quill
Spindle Motor:
65-69 ft-lbs torque @ 15-20 gpm, 1000 psi 462-617 rpm
Cutters:
• 445-1024 Shell Mill: 4.92 inch cutting diameter, 1-1/2 inch pilot (38 mm), replaceable inserts
• 445-8502 Fly Cutter: 4-1/2 inch diameter, accepts standard 1/2 inch tooling
